It enables reproducible and standardizable results in plant research, breeding, product development, quality assessment, and beyond.

Features

• Image acquisition, storage, and advanced image analysis including machine learning options

• Metadata, annotation, and analysis directly linked to image

• Intuitive graphical user interface

• Advanced LED illumination options

• Easy export of images and data

• The laboratory phenotyping system is available with industry-grade cameras in horizontal, vertical, and rhizobox-view positions, combined with different lighting and imaging technologies

• Phenotypic data include count, size, morphology, and color, as well as application-specific features

Hardware Options

• PhenoAIxpert Pro

• PhenoAIxpert Pro Root (Standard or Multispectral)

• PhenoAIxpert Pro Root Multiview (Standard or Multispectral)

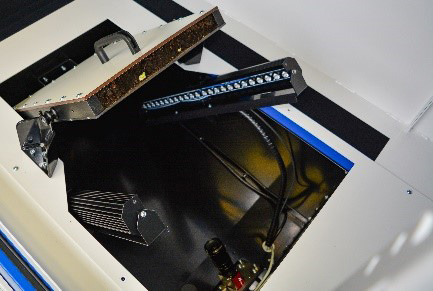

Imaging and Lighting

• Minimum 12 MPix RGB industrial camera with prime lens for distortion-free imaging

• Optimized white LED illumination

• 16 MPix Greyscale camera with prime lens for distortion-free imaging

• LEDs with a range of different wavelengths - camera images 16 MPix per channel

• Filter wheel for up to 6 different filters for filtering reflected or emitted light

• Imaging setup customized for rhizotrons
