Sensitive, fast and compact analyzers for measurement of CH4, CO2 and H2O

Introduction

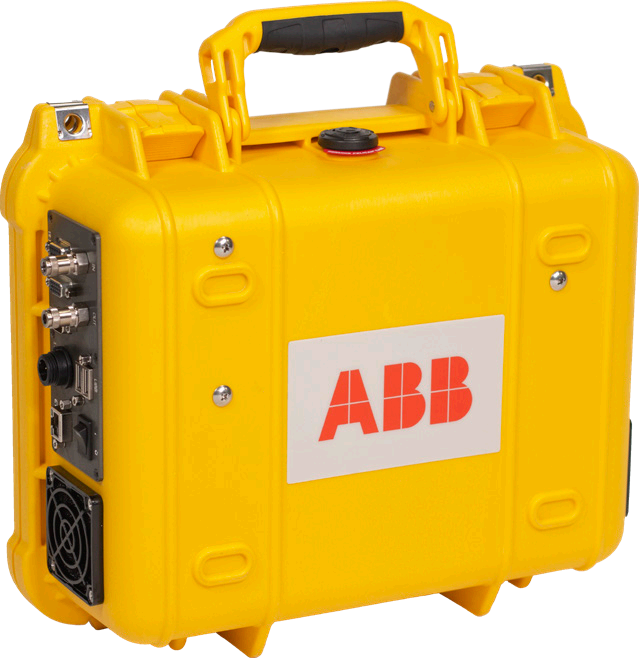

• ABB's microportable gas analyzers (GLA131-GGA) reports measurements of methane, carbon dioxide and water vapor simultaneously in a package that is compact, crushproof and travels anywhere. Small enough to be hand-carried (even on-board aircraft) and requiring less than 35 watts, the GLA131-GGA offers opportunities to measure greenhouse gases anywhere.

• The GLA131-GGA starts recording data within 20 seconds after power on so users do not have to wait for a long warm-up period for the system to thermally equilibrate.

• The GLA131-GGA analyzer has an internal computer that can store data practically indefinitely on an SD card and send real time data to a tablet, smartphone or other WiFi device. The analyzer includes control and analysis software.

Features and benefits

• Lightweight:<6.1 kg (13 pounds) with battery (included)

• Continuous measurements

• Data reported every second with high sensitivity

• Ideal for soil flux studies and field measurements of greenhouse gases

• Extremely wide linear range, CH4, range up to 1% (optional)

• No cross-interferences

• Battery-operated

• Fast gas flow response time

• Records data within 20 seconds after power on

• Multiple data outputs and internet connectivity

• Recirculating capabilities (inlet/outlet)
