Multi-wavelength observation and recording, wireless connectivity, automated image capture and analysis.

LED Lights

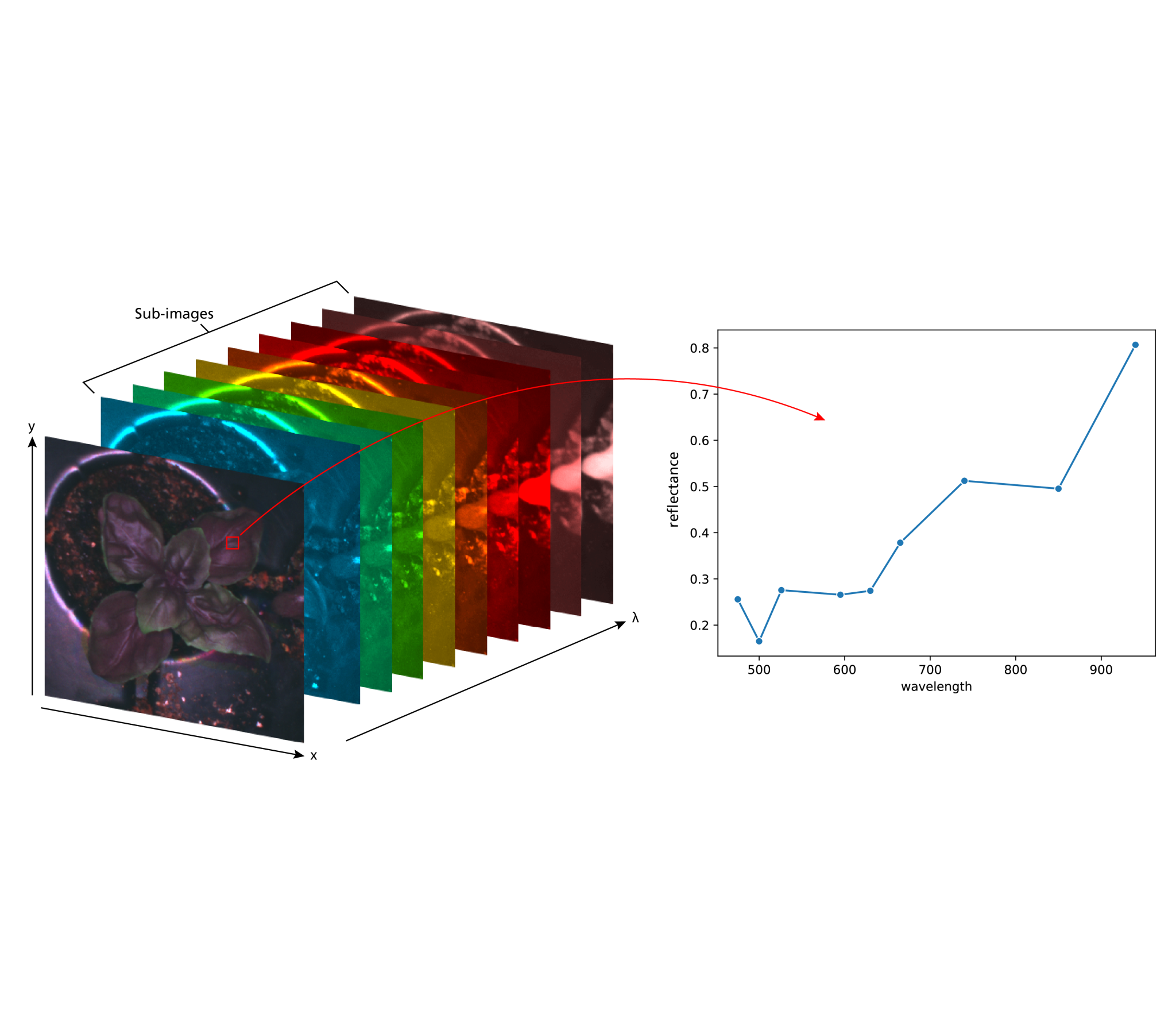

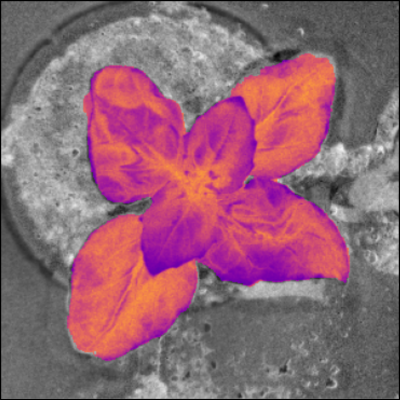

• The RVS Camera uses built-in LEDs to illuminate the plants with up to 9 wavebands + white (broad spectrum). The RVS Camera captures the reflection of surfaces using the user-selected wavelength bands and creates multi-spectral image cubes in ENVI format; these image cubes contain more information than the human eye can see and can be used to analyze plant material non-destructively.

Product Features

• Wi-Fi connection for wireless communication.

• Intuitive web interface.

• Easy Connection via built in Wi-Fi access point for initial set-up.

• Open-source analytics application included via download.

• Multispectral images in ENVI format, stored on the SD-Card, remote download via the analytics application.

• REST API to connect and automate lab-based workflows.

• Streaming view, still RGB and multi-spectral image generation.

• Built-in real time clock for scheduled image taking.

• Generation of ‘pseudo color’ RGB images for human consumption.

Applications

• Analyzing vegetation

• Painting analysis

• Assessing food quality
