Measure metabolic rate (VO2) in aquatic animals.

Features

• Optical DO Probe

• Small Respirometry Chamber (140ml,  3.8cm ID, 15.3cm long)

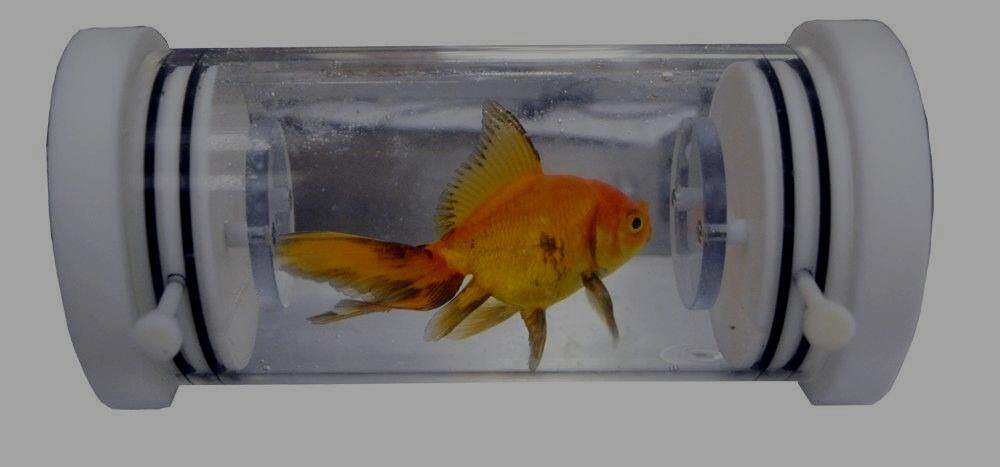

• Large Respirometry Chamber (660ml, 8.2cm ID, 16.7 cm long)

• mini-AQUA chamber (9ml, 1.6 cm ID, 4.5 cm long)

• micro-chamber (1.23ml, 1.5 cm ID, 0.85cm depth) in mini-AQUA

• Temperature & Salinity Probe for Water Bath

• Liquid Pump (1 LPM or 0.1LPM in mini-AQUA) & 3-Way Valve

• Digital Control Unit for 3-Way Valve Control

• 6 Channel Data Interface

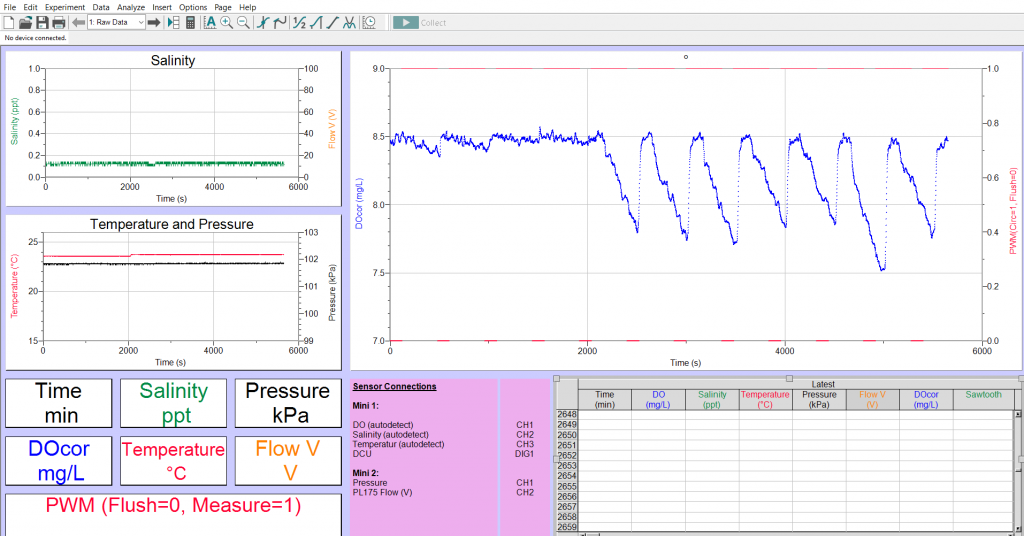

• Data Acquisition Software

• Absolute Pressure Sensor

• Rugged Weatherproof Case

Components - 1

• G217 Large Respiration Chamber (8.2cm ID, 16.7cm L, 660ml)

• G216 Small Respiration Chamber (3.8cm ID, 15.3cm L, 140ml)

• G210 mini-AQUA chamber (1.6cm ID, 4.5cm L, 9ml)

• G223 mini-AQUA micro-chamber (1.5 cm ID, 0.85cm depth, 1.23ml)

• S122 Optical DO probe

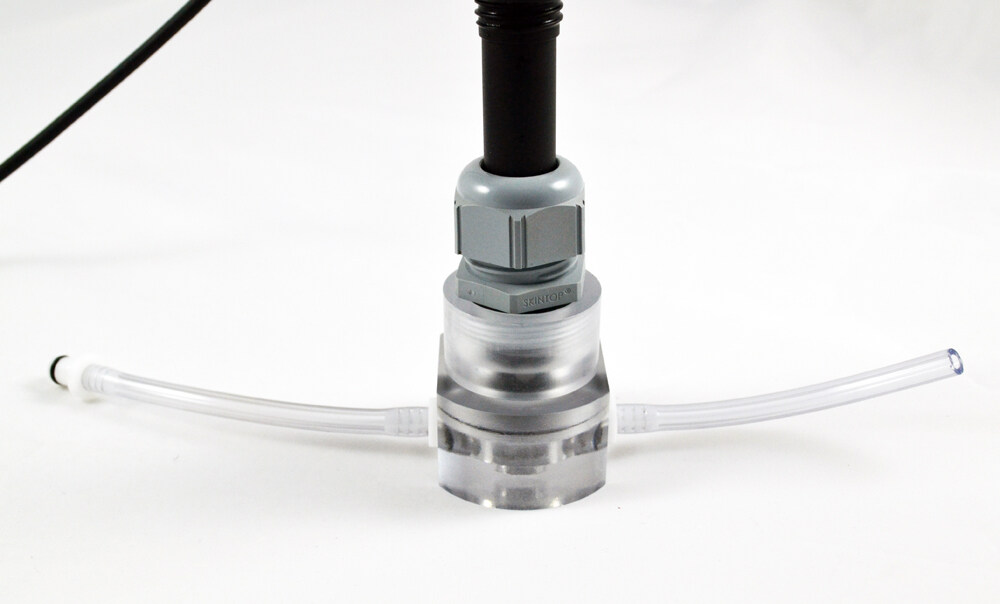

• A260 Flow-Through vessel for DO probe

• PL175 Liquid Pump (1LPM)

• PL100 Liquid pump (0.1LPM) mini-AQUA

• A236 Three-Way Valve

• C200 Digital Control Unit for 3-Way Valve

• A750 Simple Plastic Water Bath

Components - 2

• S132 Temperature Probe for Water Bath

• S181 Absolute Pressure Sensor

• S130 Salinity Probe

• 6 Channel Data Acquisition Interface (C610 x 2)

• C901 Software and C404 Experimental File

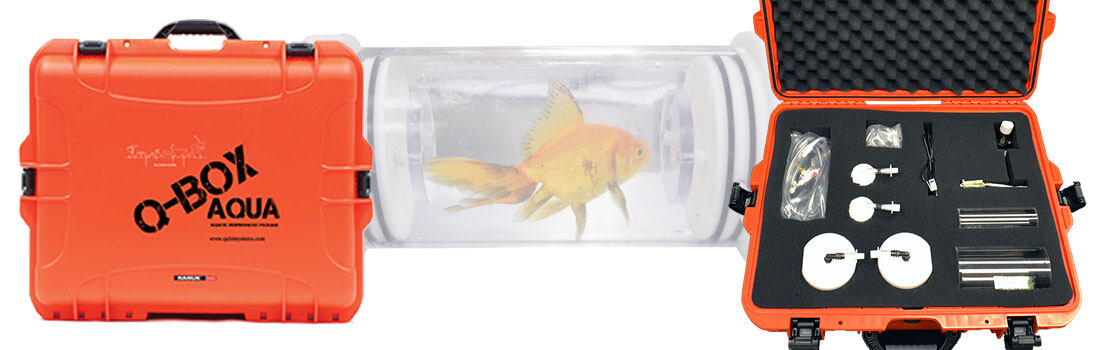

• Rugged Weather-proof case for Storage and Transport

• Q-Box AQUA Accessory Kit (tubing, connectors, filters)

• User Manual

• A249 Battery Pack (optional)
