Measure photosynthesis, respiration, and transpiration in leaves.

Features

• Modular Gas Exchange Measuring System

• Components interchangeable with other Q-Box Packages

• Automated calculations of carbon and water exchange rates

• Housed in rugged box for easy transport and set up

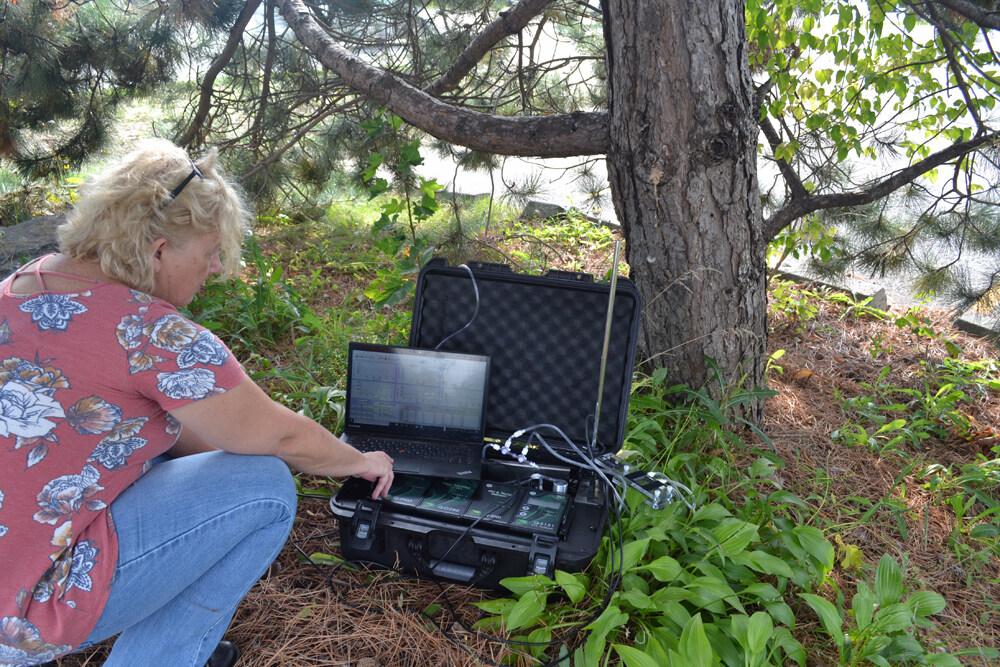

• Use in a lab or Field (with optional battery pack)

Components - 1

• Q-A101 laboratory stand (free standing and/or integrated into Q-Box)

• A113 LED Light Source Calibrated in Software

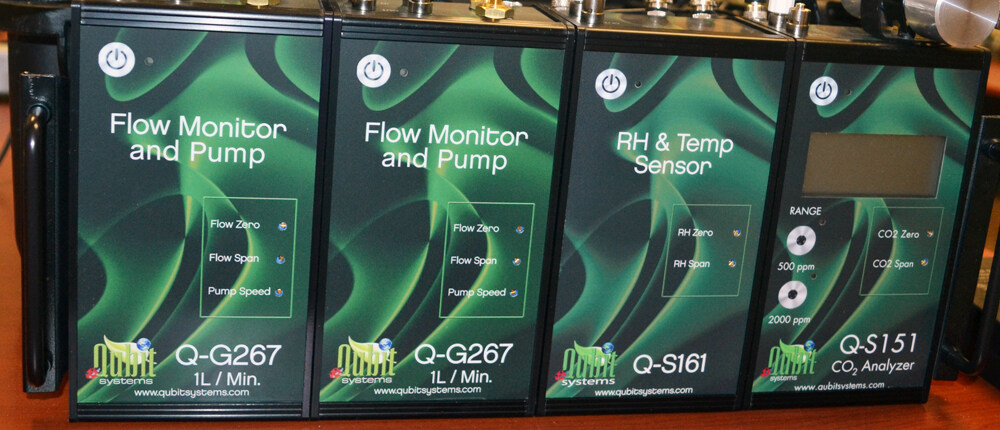

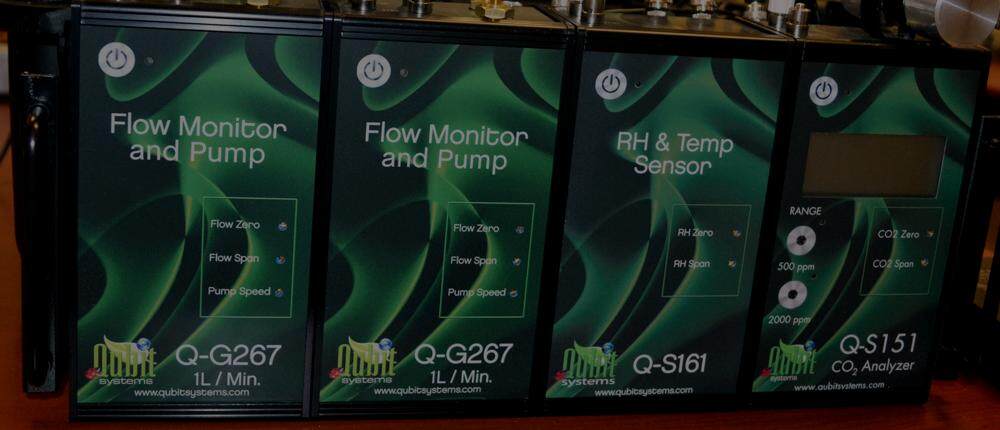

• Q-G267 Flow Monitor, Gas Pump x 2 (1L/min no load)

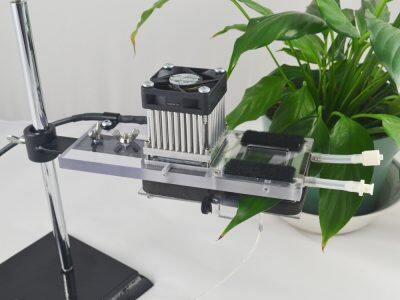

• G112 Flow Through Leaf Chamber

• G122 Large Gas Bags (2)

• Q-S151 CO2 Analyzer (0-2000ppm) (Includes CO2 and H2O scrubbers)

• Q-S161 RH/temperature sensor

• S173 Leaf Thermister

• C200 Digital Control Unit (DCU)

• A381 Two Solenoid Assembly for switching between reference and sample gas




Components - 2

• S181 Absolute Pressure Sensor

• C610 Three integrated LabQuest Mini data interfaces (9 Analog Channels)

• C901 Logger Pro Software

• C404 Customized Experimental Setup Files for collection, display and analysis of data

• Q-Box Accessory Kit (tubing, filters, connectors)

• Rugged Water-proof case housing the sensors and analyzers

• Manual

• Individual power supplies for stand alone use of the sensors and analyzers

• Li-ion 3 Battery pack (optional)
